A Dog House for my Tender

Among all the big things I have been making with 3D printing there are also the odd small parts and I had a request a little while ago for a dog house.  Now as much as I am a fan of our four-legged friends sadly this is not a building for them!  The name ‘Dog House’ in railroad terminology refers to a small shelter on top of the tender for the brakeman; this dates back to the days of roof walks and cabooses.  With freight trains getting longer the brakes on the locomotive and caboose rapidly became insufficient to stop the trains so it was the brakeman’s job to go up and down the roof walks and apply the brakes on the individual cars.  The brakemen usually traveled in the caboose but often it was necessary to station a man at the head of the train. Space on the locomotive footplate was limited.  This led to the Dog Houses being added on top of the tender, facing towards the back of the train.  From this small building the brakeman had shelter from the elements and he could see what was happening with the cars and his fellow roof walkers. As far as I know only men did this job?

Several railroads used Dog Houses made from a variety of materials; the first Dog House I am going to 3D print will be based on a steel plate structure as used by the Norfolk & Western on their huge Y6B articulated steamers.

Dog House 1

Yes, I know this is a Sierra Railroad locomotive and I know they never had a Y6B, but I like it!

I had a request for a steel Dog House to replace a damaged one from a Rowa Y6B, the same model as shown above.  As I have a model of this locomotive it was a simple case of measuring the original and reproducing it as a 3D model; the trick is to get the detail large enough to print but not too big that it looks out of scale.  As shown below the structure is hollow, not only to reduce the cost, but also to make it realistic.  The thinnest part is the center bar between the windows, but it is just on the limit of what is printable for the FUD material, so it should be okay.

N&W Dog House

Once printed the Dog House spent the night in a jar of Goo Gone followed by a wash-off in warm soapy water. This removes the residue from the print processes, please see my FAQ section for more information. After cleaning it was ready to be painted and added to a model.

Steel Dog House 1 Steel Dog House 2

As my Y6B already has a Dog House this particular one is now a spare but I always test print all my designs before I make them available to buy.

Steel Dog House 3 Steel Dog House 4

You can get the Dog Houses here.

I also plan on doing a timber Dog House and that will be in a later post.

Completing the Dummy Chassis for a Bachmann EMD DDA40X

The test print for the Bachmann EMD DDA40X has arrived so in this post I will show you how it worked out and what we did with it.

This print was made from Shapeways’ White Strong & Flexible material (WS&F) and this was the first time I’d used it.  The finish was a little rough out of the box but the overall definition was good, as shown below.

DDA40X Dummy Chassis 1

It is, as the name suggests, strong and it holds its shape perfectly.  Given that the chassis  will be mostly covered up the roughness is not a concern, although it could easily be smoothed with a quick wipe with sand paper.

The chassis has been designed to work with the fuel tank which comes with the DDA40X. The fuel tank clips onto the chassis using the same fixing lugs that are on Bachmann’s power chassis.  Below is an image of the tank clipped onto the chassis; what it doesn’t show is that the lip on the chassis that fits inside the tank is little bit too big and needed to be filed down.  This has been fixed in the 3D model.

DDA40X Dummy Chassis 2

Bob, who does the painting and assembling, wanted to add power to the model as the DCC circuit board was still in the shell which also controls the top and tail lights and the flashing light on top.  Because this is a test print, and because I haven’t drawn the correct ones yet, we are using dummy trucks designed for an EMD DD35 model.  These work with 4 Fox Vally 36″ metal wheel sets (FVM3611) each.

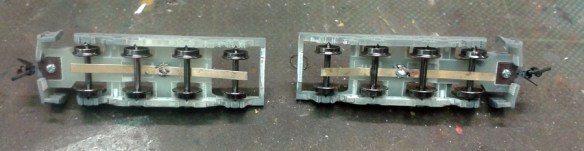

The trucks are printed in the Shapeways FUD material as they are highly detailed.  Bob sprayed them with a base gray and then added power pickups using thin copper strip.  The strips where soldered to the ends of bolts to be used instead of the bolster pins as pictured below.

DDA40X Dummy Trucks 2

DDA40X Dummy Trucks 1

The strips pick up power from all axles on each truck.  The washer was added to the first photo above because the chassis sat a little too low and rubbed on the side of the trucks.  An extra down stand has now been added to the chassis 3D model to accommodate this.

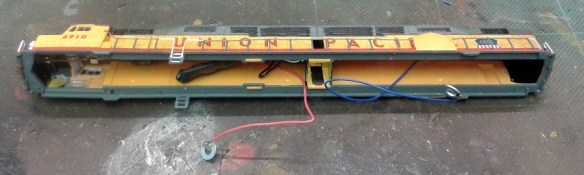

The shell needed a little modification as well.  Power wires have been added to the circuit board with washers so they can be connected to the bolts which attach the trucks.

DD40AX Shell 2

The central corridor has also been completed.  Because the Bachmann chassis fills the whole shell, Bachmann did not add the side walls to the corridor, but when the shell is fitted to my dummy chassis there would be a big void viewable through the doorway.  Bob used plastic strips to complete the corridor.  He painted the inside of the walls black and the corridor Armor yellow to match the shell.

DD40AX Shell 3

With all the parts assembled it became apparent that the overall model was too light so Bob added some extra weight inside the fuel tank as pictured below.

DD40AX Shell 4

Here is the model on the track powered up. It runs freely and is perfect for a second unit or mid train helper.

DD40AX Dummy 2

As this was the first time using the WS&F material I’m keen to try it on another project. It is rougher than the FUD and has a little less definition, but its strength and cost effectiveness will lend itself to projects which, if made using the FUD, would be unrealistically overpriced. Obviously body shells etc that require the detail will have to be done in FUD but with 3D printing any range of parts for the layout can be produced, and new materials are always being made available so watch this space!

Once I have drawn up the DDA40X dummy trucks I will make the kit available through my Shapeways site.





A Dummy Chassis For a Bachmann EMD DDA40X

The problem with kit bashing is the spare parts left lying around afterwards! With the new Bachmann DDA40X chassis being used for my 3D printed DD35 models, Bob, who does the painting and assembling, realized he was starting to get a lot of spare, brand new DDA40X shells lying around and he came up with a great idea.  Why not print a dummy chassis and trucks to use with the spare shells? They can be used as dummy locomotives or even mid train helpers.

The DD35 locomotive shell was designed to fit directly onto the DDA40X chassis, after it was shortened by 24mm, and the DD35 dummy locomotive uses exactly the same shell.  So the theory is to take the DD35 chassis and lengthen it by 24mm which should make it into a DDA40X dummy chassis. The main differences would be the fuel tank and the ends of the new chassis. The DD35 dummy chassis, pictured below, has the fuel tanks permanently attached as part of the print and the ends are shaped to match the DD35 shell.

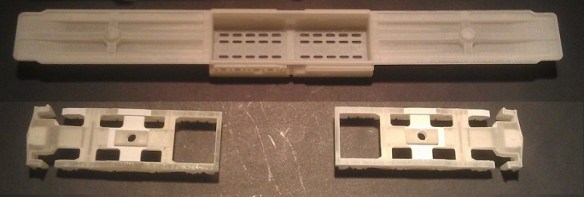

EMD DD35 Chassis Kit

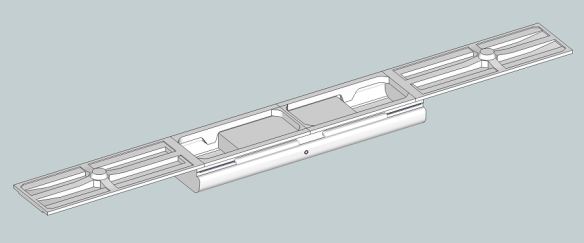

The DDA40X fuel tank was much longer then the DD35’s and was all one piece as opposed to being made from a pair of GP35 tanks.  Bachmann made the DDA40X fuel tank out of a strong plastic with a metal insert which added weight to the locomotive.  It was a removable item which clipped onto the underside of the metal chassis.  After lengthening the new chassis I roughly modeled in the DD40AX fuel tank and positioned it as shown below.

DDA40X Chassis & Fuel Tank

I added lugs which would drop down and line up with the fixing holes in the fuel tank, so when printed the real tank will clip on in the same way as it did to the metal Bachmann chassis.  The cross bar in the middle is designed to give some rigidity to the large opening but I made sure it was above the metal insert.  The ends of the chassis didn’t need to be as long as I originally intended because, as pictured below, the Bachmann shell changes shape at the ends, and the flat surface which sits on the chassis is interrupted by the lugs circled in red.  This also repeats at the other end even though there is no cab.

DDA40X Shell 1

I decided to stop the new chassis at the lugs and, because the couplings are a part of the truck assembly, any more material used past the lugs would be redundant and only add to the cost.

As there is no detail on this chassis, because the original fuel tank is being reused, it didn’t make sense to print this in the FUD material as it would be more expensive, therefore this chassis will be made from Shapeways’ White Strong & Flexible (WS&F) material.  This is my first print using this material and it has some different design criteria; mainly that the minimum thickness of material is higher. However, even with thicker walls, the cost works out a lot cheaper than if printed in FUD.

The final design for the new chassis looks like this.

DDA40X Chassis

The test print will be printed in the WS&F material along with some DD35 dummy trucks in the FUD material.  Although these trucks technically are not correct for this locomotive it will be a good test to check the chassis.  The plan is to draw up some DDA40X trucks to be made available with this chassis by revising the DD35 truck design.

Next time I will show you how the WS&F material came out and the process of finishing the model.
