OO Gauge Fixed Link Coach Couplings – Part 2

In last week’s post I shared with you my designs for some 3D printed OO Gauge fixed link couplings specifically for coaches; you can find the post here.  This week I’ll be showing you the actual couplings and some images of them in use.

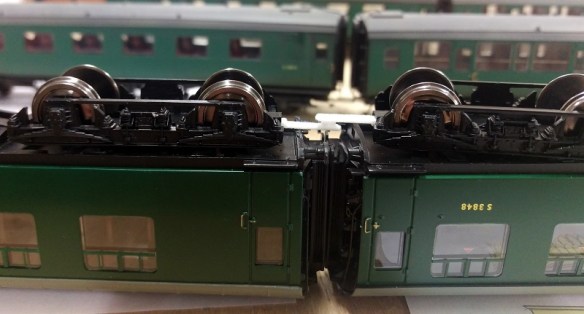

The initial test prints were done in Shapeways White Strong & Flexible material.  I chose this because it’s the cheapest material they do.  I’ve also used the Strong & Flexible material, instead of my normally prefered Frosted Detail plastics, as these couplings don’t need any fine detail. As they are hidden they simply need to function.  In the image below you can see a set of the white couplings in a pair Bachmann Mark 1 coaches.  This particular set turned out to be too short as the corridor connections meet before the pegs could locate into their holes.

But the good news is I test printed several different sizes in order to see what worked and I was able to come up with a set of 5 which covered all bases.

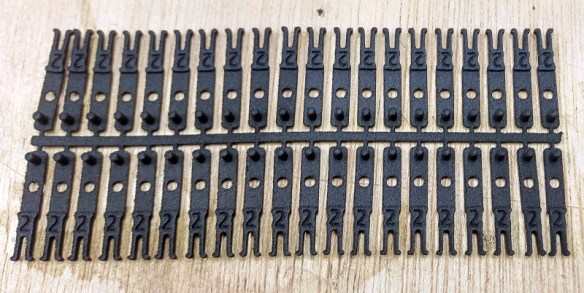

Below is a set of 40 Type 2 or length 2 couplings.  These are the second shortest type.  This time I 3D printed them in the Black Strong & Flexible material which will also be used for the final couplings.

These couplings were originally developed for use on the beautiful new model of Bournemouth West.  So a good set of coaches to test the new couplings on is Hornby’s British Railways Somerset & Dorset Maunsell coaches, as they would have been common in this station.

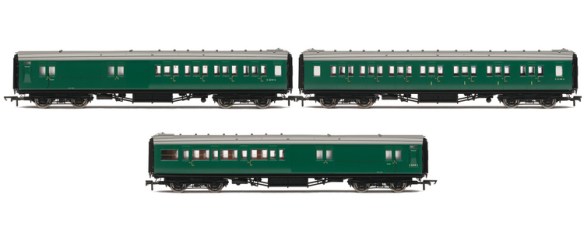

In this stock photo below you can see the big gap between the coaches using the standard OO couplings.

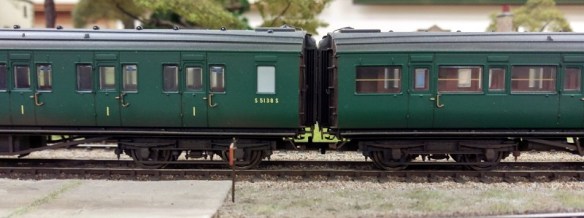

However with my coupling fitted, the corridor connections are millimeters apart, as you can see in the images below.  This gives the impression of a joined connection.


And as these coaches are fitted with the NEM cam system, this causes the NEM socket to swing and move out on corners; the gap increases as the coaches travel around corners. This prevents the corridor connections and buffers from locking up and derailing the coaches.

The overall effect is very good.  Also they won’t come uncoupled but can simply be lifted off the layout when done.

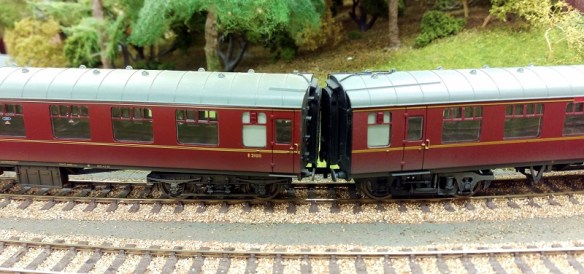

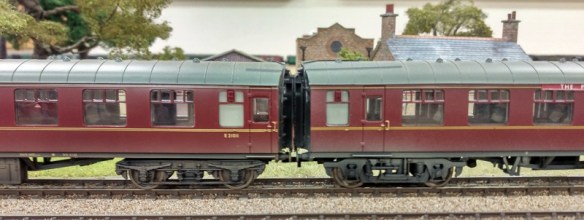

These couplings also work well for the Bachmann Mk’1 coaches.

This older set wasn’t fitted with the cam system but my couplings still worked well around the corners, as the NEM socket swivels.

The Hornby Pullman coaches have their NEM couplings set much further back than the others I’ve tested so far and required a longer coupling.  The ones used below are still a bit too long but this has been corrected in my computer model.

Here are some videos of the test couplings in use with a push-pull service reversing around the corner and heading into Bournemouth West Station.

And again with a section of the Bournemouth Belle coming around the corner and heading into Bournemouth West Station.

And finally with the Pines Express; some of these coaches have Kadee couplings but mine have been used on the rest.

Just of interest, the layout Bournemouth West will be making its debut appearance at the Swindon Railway Festival, held at the Swindon Steam Museum on the 9th and 10th September 2017.

Next week I plan to share the couplings with you in their finished condition and also let you know where you can get them.

OO Gauge Fixed Link Coach Couplings – Part 1

At long last my freight couplings for British OO rolling stock with NEM sockets are now available, so it’s time to share with you my designs for coach couplings.  You can find the freight couplings here.

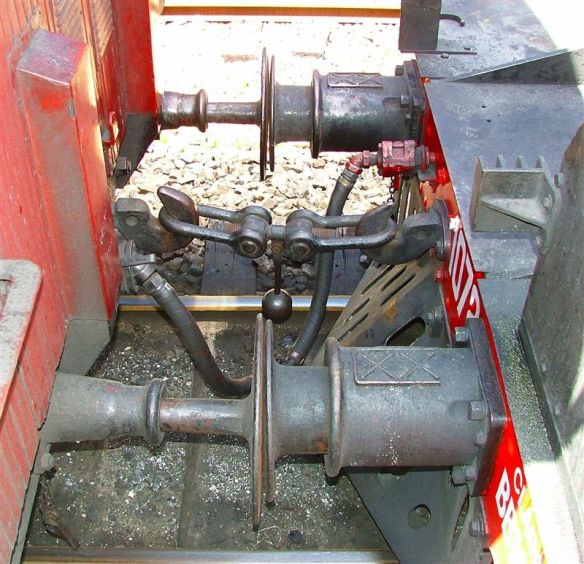

Early British coaches had similar coupling to the freight 3 link.  They each had a hook and a chain, but because passenger stock needs to be smooth, the chains had a screw section in the middle. This worked by having the locomotive push two coaches together so the buffers compressed, then the chain was hooked over the hook and the screw tightened up.  When the locomotive releases the pressure the buffers can never fully un-spring.  This means there’s never any slack which would cause the train to snatch and jerk, as that’s not ideal when you’re sitting down to lunch!  Below is an example of a locomotive coupled to a coach with a screw link coupling.

Later coach stock adopted the knuckle coupler, very similar to the standard system used in the US. The difference is the knuckle can rotate around the hook so both systems could be used.  The knuckle coupler would hang down allowing normal access to the hook.  When needed, the knuckle coupler was lifted and held in place by a pin.  In the picture below you can see this arrangement on a BR Mk 1 coach. (Picture by Chris McKenna from Wikipedia)

The pin also held the knuckle down when not in use to prevent it from swinging.  This has also been implemented on locomotives.  You can see it on the front of the BR Class 91 locomotive below. (Picture by Chris McKenna from Wikipedia).

Modeling this can done and, with newer models now having the NEM sockets, different couplings can easily be exchanged.  A plug-in Kadee knuckle coupler is available for the NEM socket and it’s a good way to connect coaches.  However as with the freight stock, if you have rakes of coaches which you want to stay permanently coupled, adding Kadee couplers comes with the risk of separation plus the expense of adding one to each end of every coach.  Bachmann make a coupling designed to be a fixed link between coaches which looks like vacuum pipes hanging down.  Again this is a good idea but what if you run trains at exhibitions or like to swap the trains on your layout?  Picking up 5 to 10 coaches all linked together is a bit tricky.

So how is 3D printing a coupler better than this?  Well, the nice thing about coach stock is they normally have a corridor connection so travelers can move from coach to coach; this hides the coupling.  Therefore the coupling doesn’t have to represent anything, it simply needs to work.

My coupling is just that, simple.

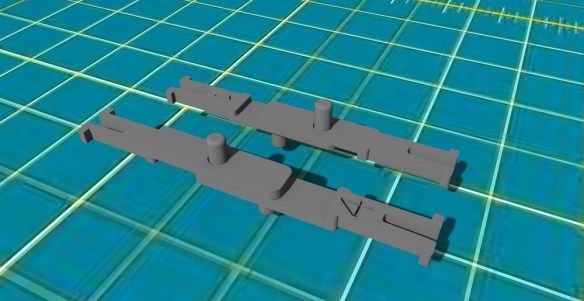

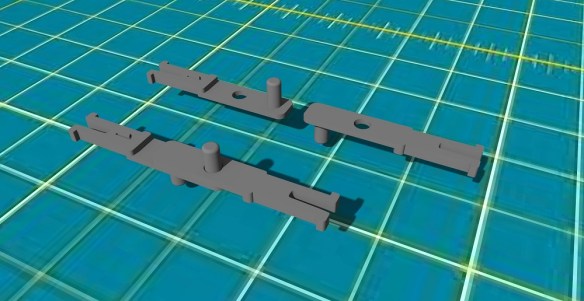

Each has a peg and hole at one end and the NEM fitting at the other.  The two couplers simply overlap.  The height of the peg ensures they won’t come uncoupled but when you want to remove the coach from the layout you simply pick it up.

As with the freight rolling stock different manufactures have placed their NEM sockets in different locations causing the gap between coaches to vary.  This gap will also need to be specific to your layout depending on the radius of your curves.  So to solve this I have made a few options in length.

And unlike the freight couplings there are only a few; five different types in fact.

They can be used in pairs with the same number or mixed together to give any required length.

Next week I’ll share more with you regarding these couplings and some images of them in use.

OO Gauge Fixed Link Couplings – Part 6

As promised in last week’s post I’ve been busy getting all the OO Gauge Fixed Link Couplings ready and uploaded onto Shapeways, and the Short series are now ready to buy.

The Short series will work for the majority of rolling stock and I’ve added a page which describes all the couplings and sample packs in detail, and that can be found here along with the links to buy each product.

The Medium and Long couplings will be available soon.

I’ve been asked if these couplings can be used for coaches as well.  The short answer is ‘yes’, but they are not very prototypical, as coaches normally have different couplers from freight stock.  But don’t panic as I also have a new and simple coach NEM coupler which is designed for exhibition and home layouts.  It will allow close coupling of coaches without the chance of uncoupling on the layout, but, and this is the good bit for exhibitions, when lifted from the layout the coaches separate straight away, making for a quick pack away after the show.  I’ll be sharing this with you, hopefully next week.

OO Gauge Fixed Link Couplings – Part 5

This week’s post will be short as I’ve been busy getting the new OO Gauge Fixed Link Couplings ready for the Shapeways shop.

As well as the sample sets I made available last week (see the post here) Types 1, 2, 7 & 8 are now available in packs of 4, 10 and 25.  As a reminder as to which couplings they are, please see the table below, which you can click on to make bigger.

Hopefully by next week I’ll have the rest up on the site as well.  If there’s a specific combination of couplings you would like please feel free to get in touch.
